Hinged Fork
Function
The two hydraulic cylinders greatly tilt the fork to the upper 35° lower 45°, allowing for the transport and loading of cylindrical cargo.
Application
Efficient in raw wood, cement pipes, pipes, bricks and loading operations
Type
Basic, Side Shift-type, Fork Positioner-type
![HF1.jpg](https://static.wixstatic.com/media/2eaba2_e5f86e63a4dc4b82a15304a69af466ac~mv2.jpg/v1/crop/x_0,y_1,w_500,h_373/fill/w_490,h_366,al_c,q_80,usm_2.00_1.00_0.00,enc_auto/HF1.jpg)
![HF2.jpg](https://static.wixstatic.com/media/2eaba2_47533273b1ae40df98774a7a5fededc9~mv2.jpg/v1/crop/x_0,y_1,w_500,h_373/fill/w_490,h_366,al_c,q_80,usm_2.00_1.00_0.00,enc_auto/HF2.jpg)

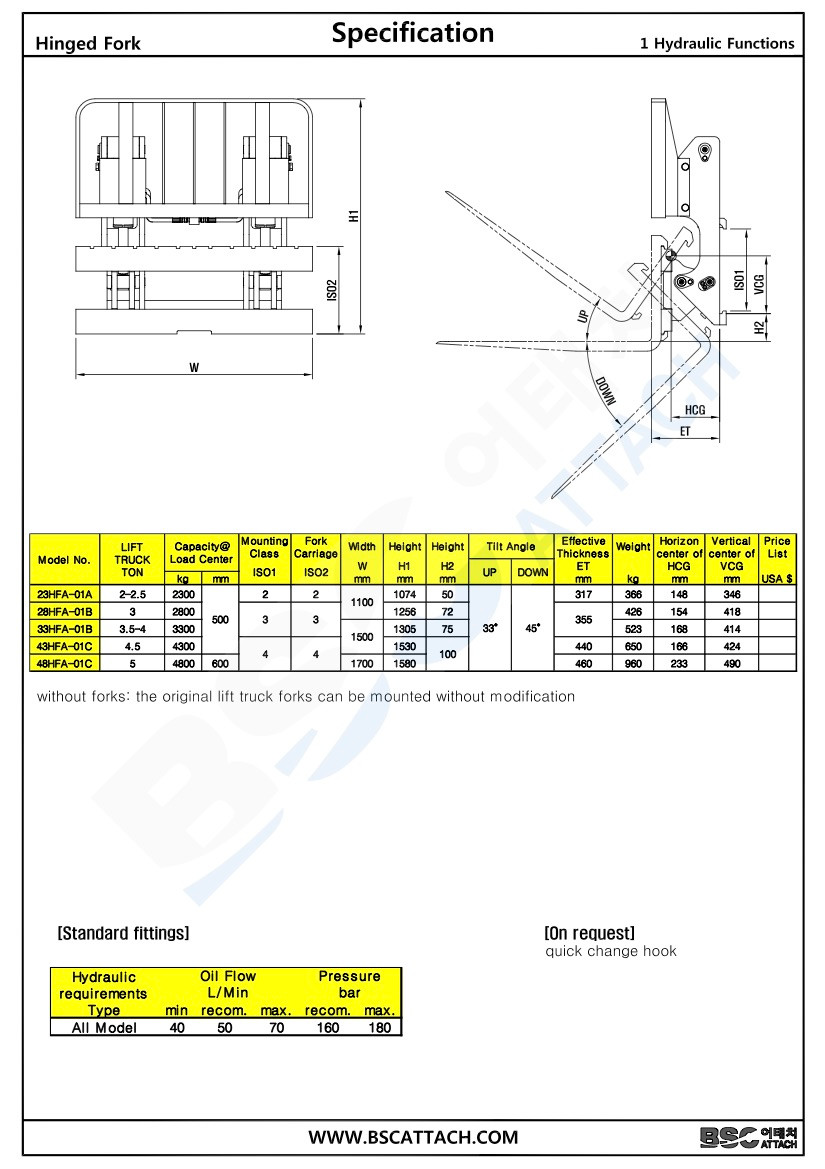

specification
![Hinged_Fork (4).jpg](https://static.wixstatic.com/media/2eaba2_76a437085afb486282fde1579e5481e5~mv2.jpg/v1/crop/x_0,y_0,w_825,h_1169/fill/w_151,h_214,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/Hinged_Fork%20(4).jpg)
